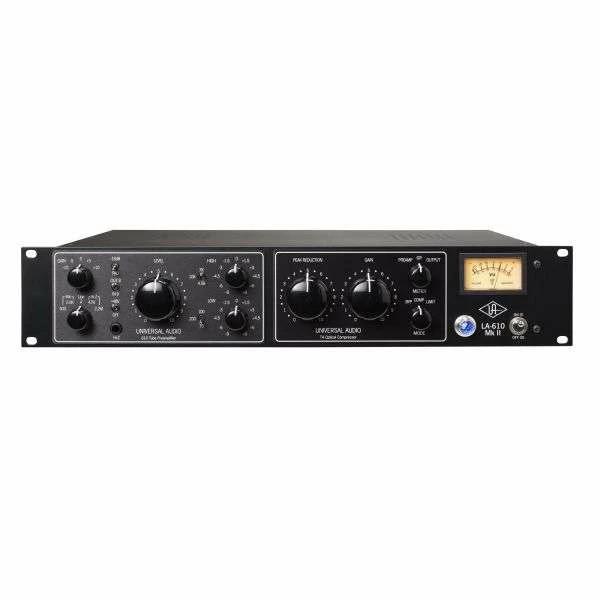

Wholesale 🥰 Universal Audio LA-610 Mk II Tube Channel Strip 🔔

The LA-610 defined the affordable, ultimate vintage tone channel strip. So how can UA improve on tonal perfection and what was already a hit product?

Enter the sequel… Universal Audio LA-610 Mk II, a second-generation revamp of the original 2005 LA-610 design. While the preamp and compressor are identical to the original LA-610 that users have come to know and love, user-requested features such as true compressor bypass, larger metering, improved output signal, an auto-sensing power supply have been added bringing the end user an enhanced user experience. The LA-610 Mk II also features the highly popular “black on black” cosmetics of the LA-610 Signature Edition.

Features:

• Based on Legendary Bill Putnam 610 Tube Mic Pre and EQ Used on Countless Classic Recordings
• Authentic Teletronix LA-2A-style T4 Opto-Compressor
• Complete vintage channel-strip at groundbreaking price within project studio reach
• Mic Pre with Gain and Level controls, variable impedance switching, and Instrument DI for recording tone “color”
• Mk II Features such as True Bypass, Larger Metering and Improved Signal Output
• UA build quality and heritage, audiophile components, hand-assembled in the USA

MK II Improvements

• True Bypass of the Compressor Circuit
• Larger and Better Lit Metering
• Improved Output Signal Performance
• Auto-Sensing Universal Power Supply
• Improved stability with feedback-style shelving EQ
• Improved consistency with Input Gain values
• LED Jewel Light Never Needs Replacing

Specifications:

• Mic, Line and Hi-Z Input, Line Output
• Dual Impedance Mic and Hi-Z inputs (Mic: 2K, 500Ω, Hi-Z: 2.2M, 47KΩ)
• 5 position Stepped Preamp Input Gain, Continuous Preamp Output Level
• -15 dB Pad Switch (15 dB Pad/Off)
• Phase reverse (0/180º)
• 48 volt Phantom Power switch (+48v/Off)
• ±9 dB stepped High Shelving Filter (4.5, 7, 10 kHz)
• ±9 dB stepped Low Shelving Filter (70, 100, 200 Hz)
• T4 Optical Compressor with Continuous Peak Reduction and Makeup Gain
• Compress/Limit/Bypass Modes of Dynamic Operation (3:1 / ∞: 1)
• Meter Source Selector Switch (Preamp/Gain Reduction/Compressor)
• Front Panel Power switch (On/Off)
• Custom Altran and Cinemag Transformers
