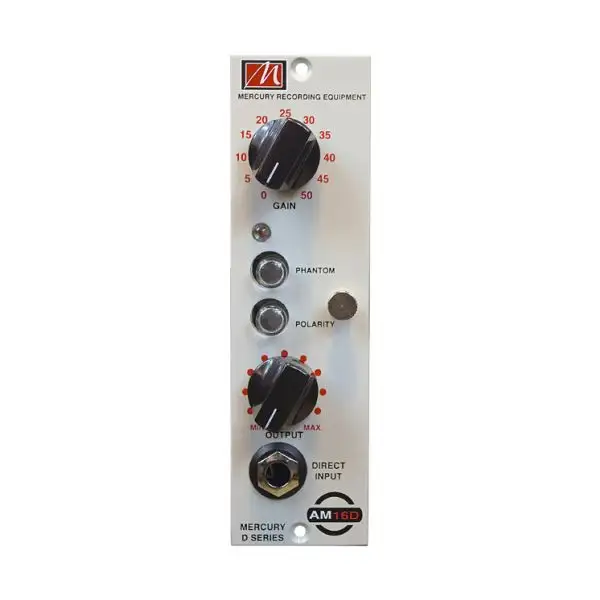

After 20 years of custom racking vintage modules and 15 years of manufacturing Mercury products… David Marquette and the Mercury design team have designed the first Mercury D Series Module for Mercury G810 Rack Systems and any 500 series rack. Going to back to an old favorite and previous, classic inspired Mercury product, the Mercury AM16, they now offer the Mercury D Series AM16D Studio Microphone Amplifier Module.
The Mercury AM16D is a D Series / 500 Series version of the original American, modular, transistor type preamplifier built in the 1960s. The AM16 is well known for being very musical overall, open and airy on the top end and having a tube-like “air” characteristic not found in most amplifiers of the same type.
Features
- Gain Control (0-50dB, 0 = Line Input)
- Phantom (48V) Polarity (Phase Reverse)
- Output Control (Fader)
- Newly designed Direct Input featuring the Mercury FDI Circuit
- Peak Indicator that allows you to see quickly which channel is receiving βhotβ signals
The Mercury AM16D has transformer coupled inputs and outputs with custom wound transformers that are modeled after the originals. These transformers are the same transformers Mercury used in their older 2U 19″ version, the Mercury AM16. The amplifier gain is set at 50dB like the original “AM16 R” high gain setting. They have added features that make the Mercury AM16D more flexible than the original, or even a modern rack solution of vintage modules.
Mercury worked with many of the vintage AM16 modules in the past. At Marquette Audio Labs, they have been racking and modifying modules since 1994 and the βvintage Langevinβ AM16 has always been a favorite. They have always had continuous great feedback from clients about the musical characteristics of the AM16. But the original modules have not been made for some 30+ years and supply is not able to meet demand. The Mercury AM16D solves that problem with the same fully discrete, “transistor type” circuitry and more importantly the same musical quality and performance of the original modules.
The original AM16 Amplifier literature stated: “The AM16 is primarily a microphone pre-mixing amplifier (mic pre). However, its performance also qualifies it for use as a post-mixing (booster) and as a low-level program amplifier. Of special note is the low noise generation figure.”
