Discount 😍 IGS Audio Pure Tube Channel Microphone Preamp 😍

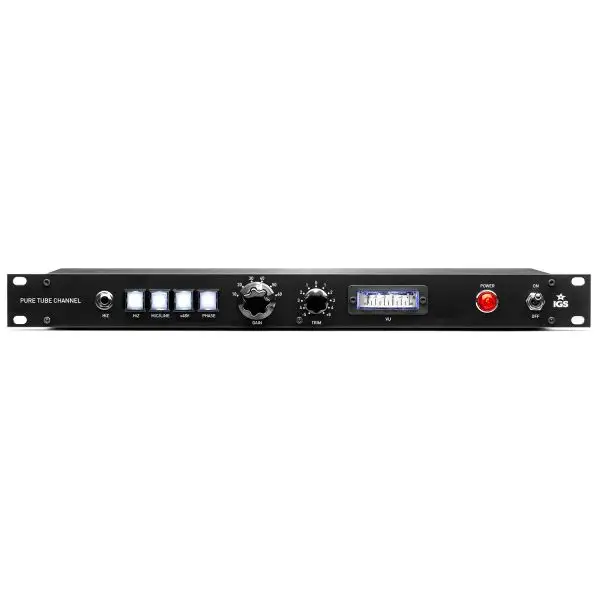

The IGS Audio Pure Tube Channel Microphone Preamp features a classic pure tube signal path built with a minimalistic approach and minimum passive parts including an input Carnhill transformer, two military-grade tubes: 6N2P-EW and 6N1P-EW which work in class A and an Edcor output transformer. The signal path includes only two Mundorf capacitors to get the best classic tube sound and as low non-harmonic distortion as possible.

High impedance instrument input

A specially designed high impedance instrument input is added for direct recording of guitar, bass or sound modules. The signal is fed directly to the tube grid for classic sound performance. High Z input is also suitable for recording of clean guitars for later use with amp modeling software in your DAW. In this case, your recordings can benefit from a low noise, proper impedance matching and added nice tube coloration for the high-quality final result.

Balanced transformer isolated input and output

FEATURES:

• All stepped manipulators: 6 steps gain/41 clicks trim
• Engineer’s custom tube set: 6N2P, 6N1P, 6B23P, 6BC8, 6BZ8
• Input impedance (balanced): 300/1200 Ohm, Carnhill transformer or 1M Ohm for Hi-Z instrument input
• Phantom power: +48V
• Input pad: -20 dB
• Output impedance (balanced): 600 Ohm
• Operating level: +4 dBu
• Max input level: +18 dBu
• Max output level: +22 dBu
• Noise level: -110 dB
• Maximum gain: +65 dB
• Frequency response: 20 Hz – 20 kHz ±0.2 dB
• THD+N : <0.1%
• VU Meters: Output Level
• Voltage: 115/230V, 50 – 60 Hz
• Power consumption: 24W
• Power supply : internal, linear
