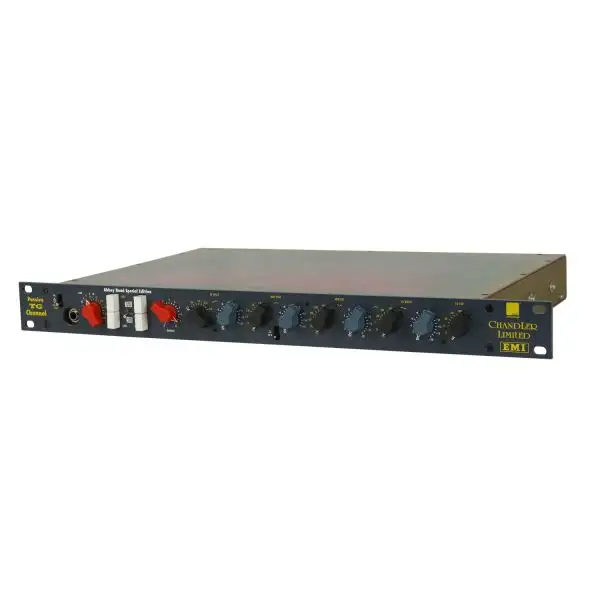

Outlet 😍 Chandler TG Channel MKII Mic Pre/3-Band EQ #002 060 (Used) ⌛

TheChandlerLimitedTGChannelMKIIisarecreationofseveralclassicEMIcircuits.ItcombinesaTG2preampsectionwithanequalizerthatwasadaptedfromacircuitintheTG12410Transferconsole.Thisconsolewasthemasteringcounterparttotheoriginal”Beatlesdesks”installedatAbbeyRoad.

TheactiveportionsoftheunitusethesamediscreteamplifiersandtransformersasintheTG1LimiterandTG2preamp.ThepassiveequalizerportionoftheEQisanallinductordesignandofferssweethighfrequencieswithlargeinductorbasedlows,andaveryhigh”Q”midcutsection.Althoughnotdesignedassuch,duetoitspassiveinductordesigntheunitwillinevitablydrawcomparisonstothePultecEQP-1A3,aVERYsimpledescriptionwouldbetocallitanEMIPultecwithanEMIpreampthrownin.

Input-Combines600ohmmicinputanda10klineinputwhichisselectablewiththelineswitch.Thefifteenpositionswitchattenuatesmicandlineandgivesalargerangeofcontrolfornormalandnotsonormaluses.Micgainfrom-15dbto+55db;linegainfrom-25dbto+45db.Includes48voltphantompowerandphasereverse.

Output-Functioningasaconsolefader,thiscontrolisplacedaftertheinputstageandbeforetheoutputstage.Thisallowsfortrimmingoftheinputsignal,aswellasallowingtheusertoruntheinputveryhot(forextracoloration)withoutdistortingtherecorder.

HighEQ-Ahighboostcontrolwith18dbofgainandaselectswitchthatcombine’sshelfandpeaksettings.Peakcharacteristicisresistorcapacitorbasedandthepeaktypesareinductorstyle:

• 16k,12k,8.1k,6.8kshelf
• 5.8k,3.9k,2.2k,1.8k,1.2kpeak

MidEQ-AmidfrequencyEQwith20dbofcutwithsixpointssetatverysharp”Q”.Speciallydesignedtofixproblemareas.Allinductorbased.

• 300,400,800,1.7k,3.3k,6.8k

LowEQ-Alowboostcontrolwith20dbofgainandaselectswitchthatcombinesshelfandpeaksettings.Bothpeakandshelfcharacteristicsareinductorbased.Also,onthepeaksettingsthe”Q”getssharperwithmoreboost.

• 30,65,165shelf.50,70,100,200peak

Lowcutat50hz
