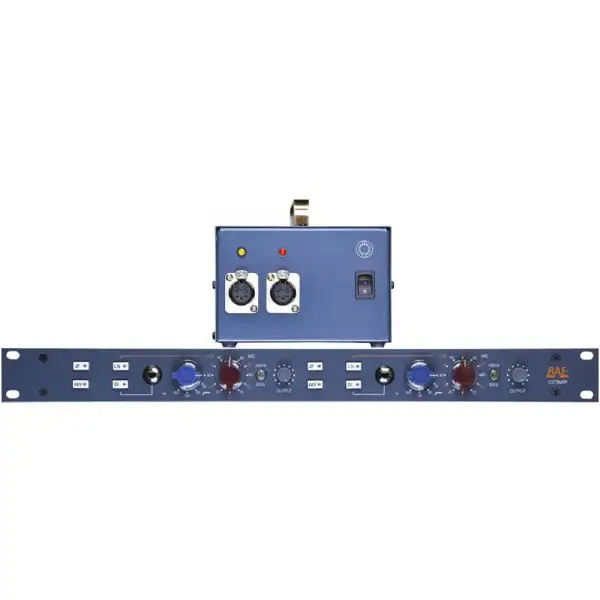

The BAE 1073MPF is basically a deluxe 1073MP. Β lt has all the same qualities as the 1073MP with one added feature, a high pass filter. Β We integrated the same inductor based high pass filter that’s in the 1073 and added it here to the 1073MPF.
- Phase reverse button
- Impedance select between 1200 and 300 ohms
- Direct input switch
- Balanced line input
- 48v phantom power
- Same 283 amp card as 1073
- Same transformers as the 1073
- Same hand-wired modular construction that BAE is known for
Features:
- Two Class A preamps with direct inputs in a single rack space with an external power supply
- High Impedance direct input for guitar and synthesizer
- Output level control serves as gain trim between the 5 dB steps on gain switch
- Balanced mic input and balanced +4 dB output are on XLR connectors off the rear of the module.
- Balanced line input is achieved through the LN switch on the front.
- Phase reverse
- Mic input impedance toggle switch between 1200 ohm and 300 ohm
- Similar Class A preamp as Neveβ’* 1073 equalizer/preamp modules
- Pad is an integral part of the gain switch same as Neveβ’* 1073 equalizer/preamp modules
- Has integrated phantom power with a lighted switch on the front panel
- Oversize remote power supply can operate up to four channels of preamp
- One-year warranty
- 10 day satisfaction guarantee
